The equipped partition wall comes in 3 versions: solid wood, double-glazed and single-glazed.
With a thickness of 100 mm, SOLIDWALL is the VETROIN wall characterised by an internal load-bearing structure made of vertical and horizontal galvanised sheet metal profiles, clad with wooden or glass-framed modules (50, 100, 150 or 200 cm wide). The uprights are equipped with adjustment feet for both floor and ceiling.

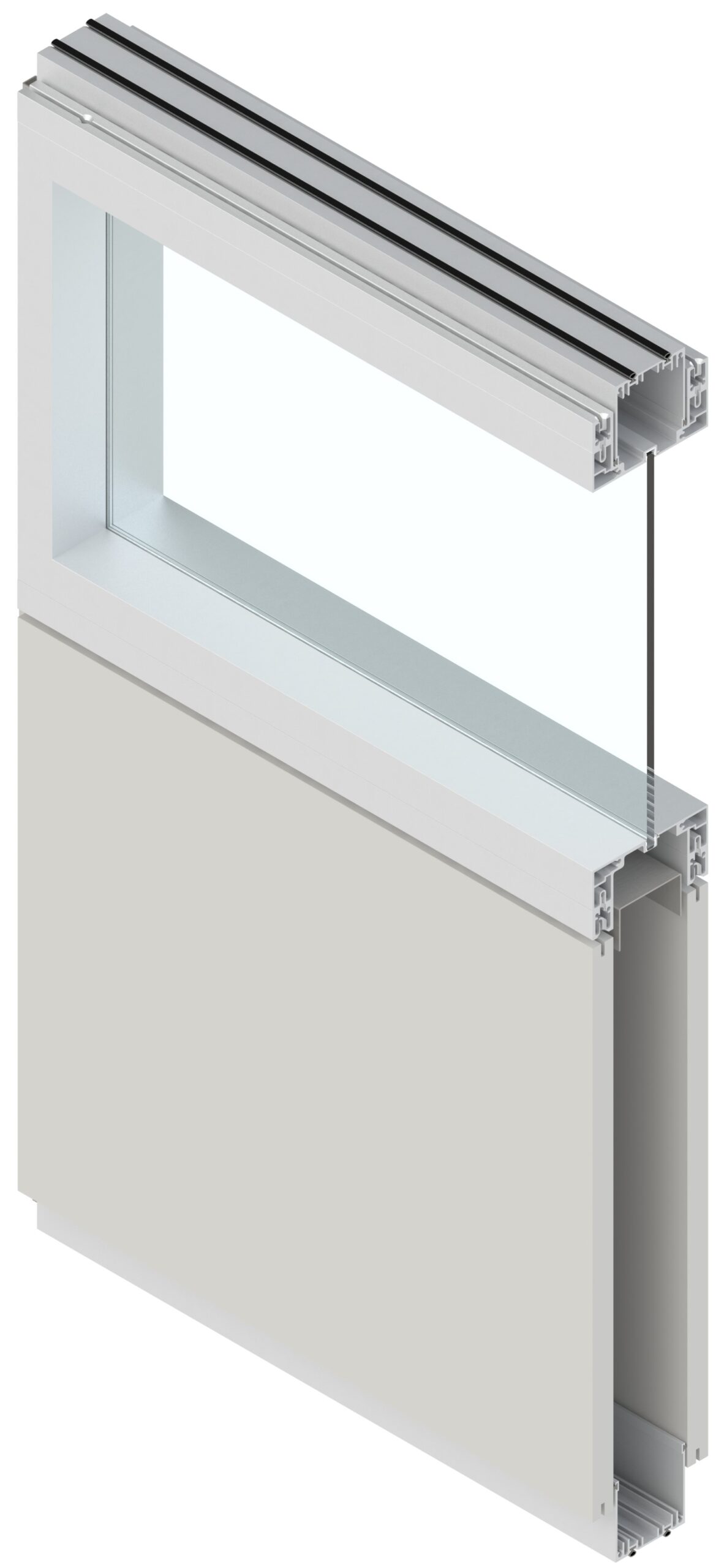

SW1
Single-glazed module
L 100 mm
H 40 mm

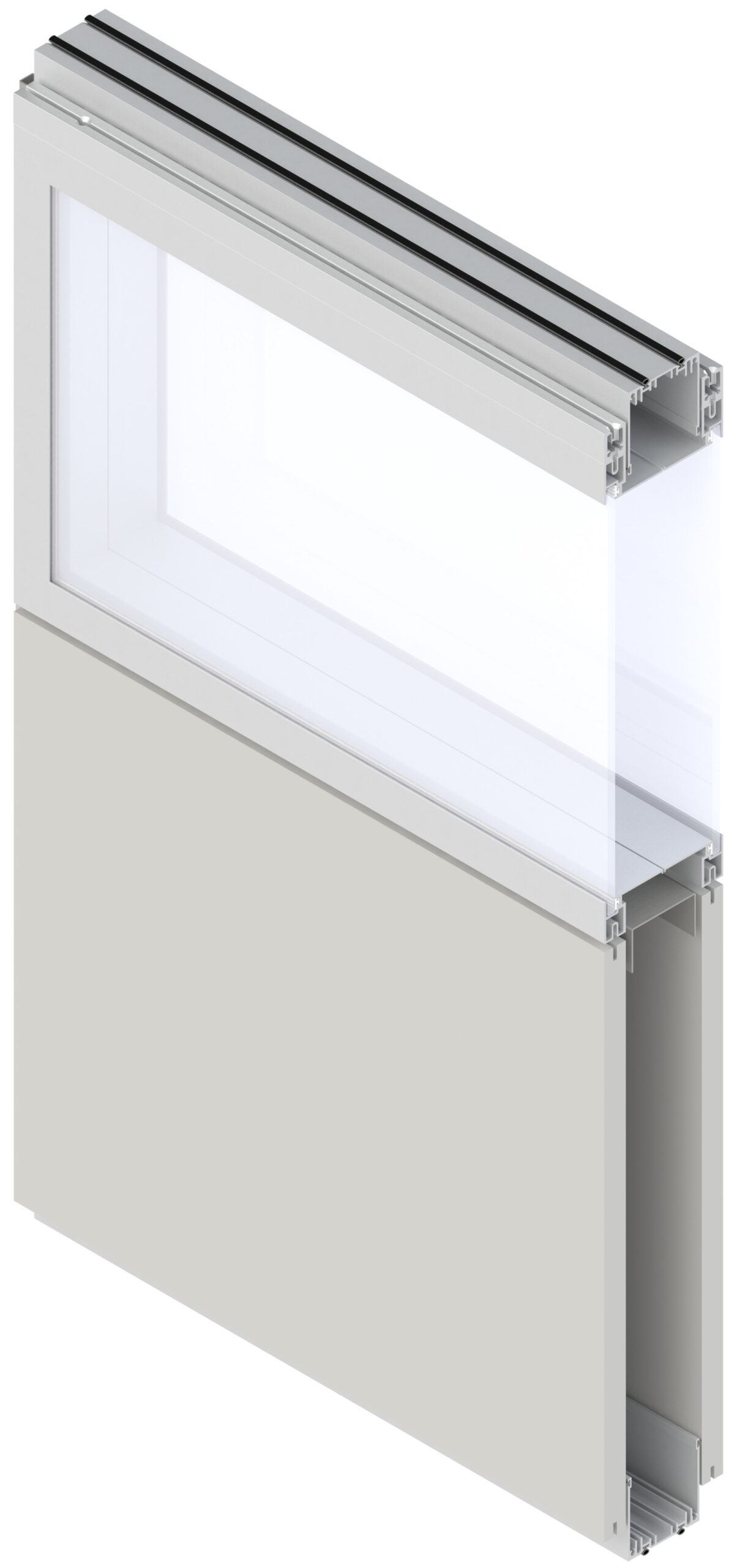

SW2
Double-glazed module
L 100 mm
H 40 mm

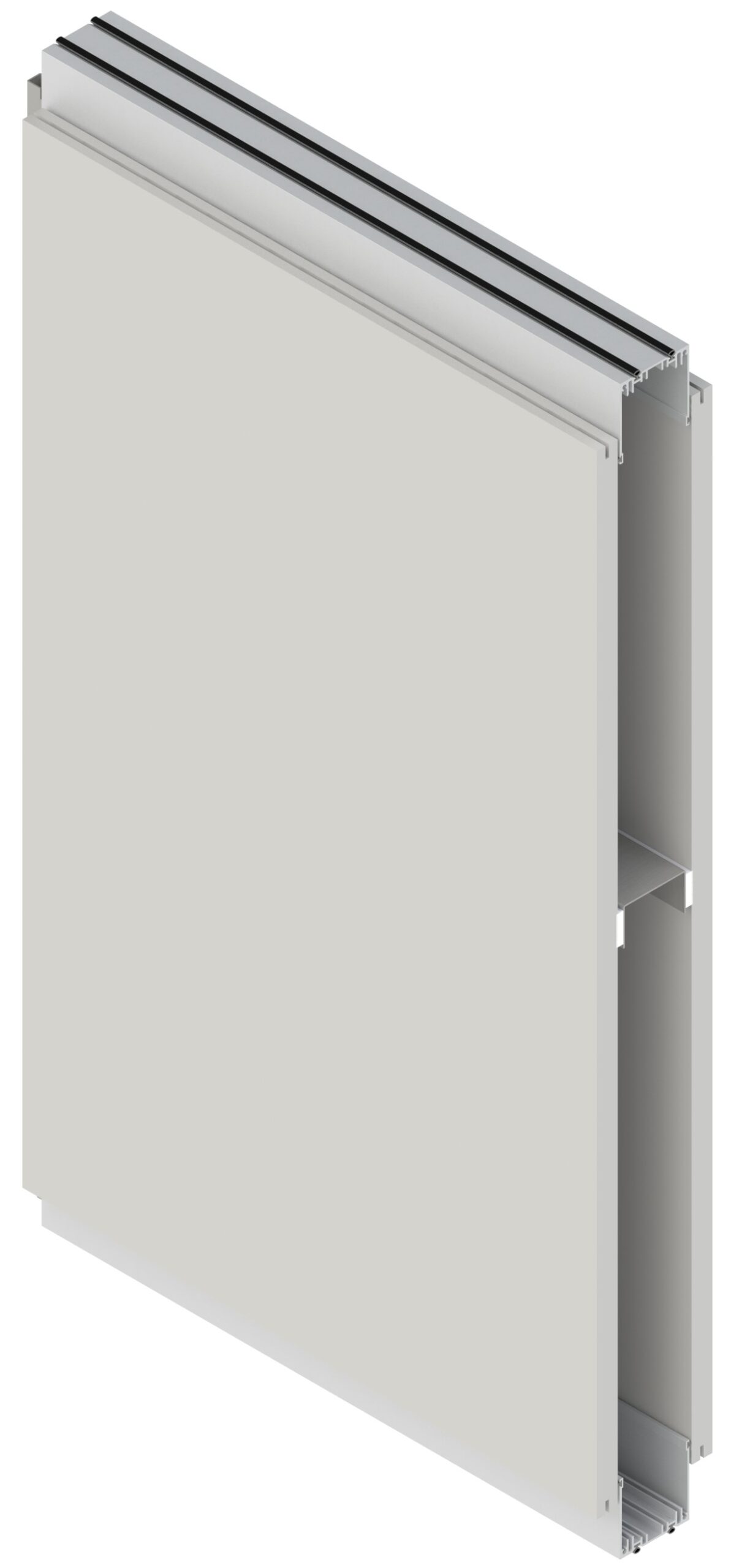

SWC
Solid module
L 100 mm
H 40 mm
A joint-covering seal is placed at the points of contact between the structure and the infill panels.
The doors for these equipped partition walls are available as hinged with blind and glazed panel, with a linear or framed hinge profile, or as single or double external sliding. All door types can be supplied either at standard or wall height.
The floor and ceiling guides, corners, end stops and glazing bead profiles are all made of extruded aluminium and fitted with plastic sealing gaskets.
Double panel
Sample size 360×300
SOLIDWALL
18 mm panel with mat
44 db
The modular storage wall with elements 50 or 100 cm wide and 46 cm deep.
STORAGEWALL is the equipped wall proposed by VETROIN for maximum organisation of offices and workspaces. It consists of a supporting structure made of 22 cm thick vertical panels of melamine-faced wood chipboard and adjustable levelling feet. The uprights of the wall are provided with double pitch holes to allow for the repositioning of the internal metal or wooden shelves. Horizontal stabilisation is provided by the 18 mm structural back.
The wall is completed with starts, corners, end panels and compensating elements. STORAGEWALL integrates perfectly with all partition walls manufactured by VETROIN.
Perfect floor and ceiling sealing is ensured by a continuous aluminium plinth complete with compensating gaskets.
The doors, at standard or cubicle height, are opaque or framed glass and are equipped with 95° opening hinges hinge gaskets handles and lock.
Available finishes
Artificial matte aluminium
Transparent
White
Magnolia
Light grey
Mud grey
Cashmere import
Fittipaldi sablé
Ascari sablé
Oak pore
Sherwood black
Pinzolo
Florence
Darfo
Milan
Atelier Sulzano XA
Atelier Cortina XA
